YSLY | HSLY | YSLYCY | HSLYCY

Control Cables

Control and signal cables are designed for the transmission of control,
measurement, and signal signals in industrial automation systems, machinery,
and electrical installations.

YSLY, HSLY, YSLYCY, and HSLYCY cables are manufactured with high-quality copper
conductors and PVC insulation to ensure reliable signal transmission, mechanical
durability, and long service life in demanding industrial environments.

Product Range

Cable Type	Description
YSLY	PVC insulated and PVC sheathed control cable
HSLY	Harmonized PVC insulated control cable
YSLYCY	PVC insulated control cable with copper braided screen
HSLYCY	Harmonized control cable with copper braided screen

Applications

• Industrial automation systems
• Control panels and switchboards
• Machinery and production lines
• Measurement and signal transmission systems
• HVAC systems
• Industrial plants and factories

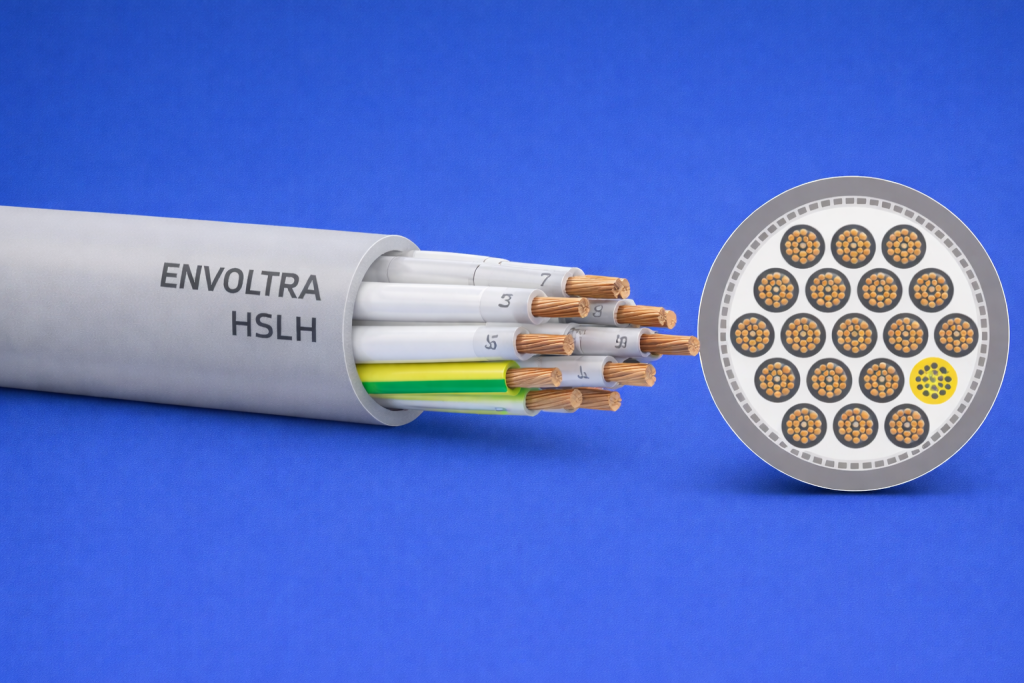

Cable Construction

• Conductor: Fine stranded copper conductor
• Insulation: Polyvinyl Chloride (PVC)
• Core Identification: Colored or numbered cores
• Inner Sheath: PVC (where applicable)
• Screen (CY types): Copper braided screen
• Outer Sheath: Polyvinyl Chloride (PVC)

Parameter	Value
Rated Voltage	300/500 V
Conductor Material	Copper
Insulation Material	PVC
Screen	Copper braid (YSLYCY / HSLYCY)
Operating Temperature	-5 °C to +70 °C
Installation Type	Fixed / Flexible
Installation Environment	Indoor

Advantages

• Reliable control and signal transmission
• High flexibility for easy installation
• Resistance to mechanical stress
• Shielded versions available for EMC protection
• Suitable for complex industrial environments

Standards & Compliance

• IEC standards
• VDE standards (for HSLY / HSLYCY)
• CE
• RoHS

Installation Notes

• Suitable for fixed installation in dry indoor environments
• Shielded cables must be properly grounded
• Minimum bending radius should be observed
• Not suitable for outdoor or underground installation without additional protection

For detailed technical data, datasheets, and customized control and signal cable
solutions, please contact Envoltra Cable.

No. of Cores x Cross Section (mm²)	Approx. Outer Diameter (mm)	Copper Weight (kg/km)	Approx. Cable Weight (kg/km)
2 x 0.50	4.80	9	36
3 G 0.50	5.10	14	44
4 G 0.50	5.50	18	54
5 G 0.50	6.20	23	64
6 G 0.50	6.70	27	76
7 G 0.50	6.70	32	81
8 G 0.50	7.50	36	95
10 G 0.50	8.60	45	121
12 G 0.50	9.10	54	139
18 G 0.50	10.70	81	201
25 G 0.50	12.90	113	285
34 G 0.50	14.70	153	379
50 G 0.50	17.10	225	527
61 G 0.50	18.50	275	624

No. of Cores x Cross Section (mm²)	Approx. Outer Diameter (mm)	Copper Weight (kg/km)	Approx. Cable Weight (kg/km)
2 x 0.75	5.20	13	46
3 G 0.75	5.50	20	55
4 G 0.75	6.20	26	71
5 G 0.75	6.70	33	82
7 G 0.75	7.50	46	108
10 G 0.75	9.60	66	159
12 G 0.75	9.90	79	179
18 G 0.75	11.90	118	267
25 G 0.75	14.30	164	372
34 G 0.75	16.30	223	492
50 G 0.75	19.10	328	700
61 G 0.75	20.70	400	832

No. of Cores x Cross Section (mm²)	Approx. Outer Diameter (mm)	Copper Weight (kg/km)	Approx. Cable Weight (kg/km)
2 x 1.0	5.60	18	55
3 G 1.0	6.10	26	69
4 G 1.0	6.70	35	86
5 G 1.0	7.50	44	103
7 G 1.0	8.10	61	131
10 G 1.0	10.60	88	201
12 G 1.0	10.90	105	226
18 G 1.0	12.90	158	324
25 G 1.0	15.70	219	462
34 G 1.0	17.90	298	618
50 G 1.0	21.00	438	869
61 G 1.0	22.70	534	1031

No. of Cores x Cross Section (mm²)	Approx. Outer Diameter (mm)	Copper Weight (kg/km)	Approx. Cable Weight (kg/km)
2 x 1.5	6.40	26	73
3 G 1.5	6.80	38	91
4 G 1.5	7.60	51	116
5 G 1.5	8.30	64	136
7 G 1.5	9.20	90	177
10 G 1.5	12.00	128	269
12 G 1.5	12.40	153	302
18 G 1.5	14.80	230	446
25 G 1.5	18.00	320	627
34 G 1.5	20.20	435	833
50 G 1.5	23.80	640	1186
61 G 1.5	25.80	780	1411
